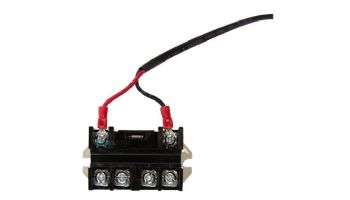

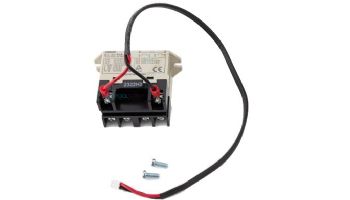

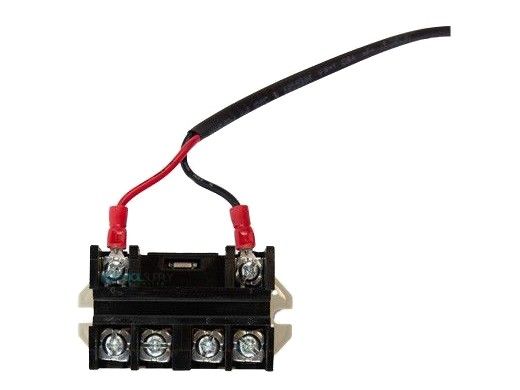

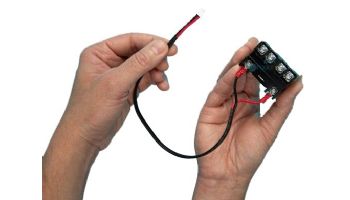

Poolside Tech High Voltage Relay Kit
Included in this kit is a pack of ten standard 25 amp high voltage relays, compatible with The Attendant automation system (sold separately), allowing for expansion on larger system installations for The Attendant. To ensure device compatibility, it is best to leverage these relays for The Attendant. By default, the base model of The Attendant ships with two high voltage relays pre-mounted and connected to ports RELAY1 and RELAY2. Depending on your model, you may have up to 8 installed. Additional relays can be installed at any time based upon the needs of your equipment pad.
High voltage relays are used to control the following:
- Single or multi-stage devices like pumps, lighting, etc.
- Dual- and multi-stage filter pumps by using two high voltage relays (one for each stage).
- Legacy pool and landscape lighting.
- Pool and spa air blowers and other water features like bubblers.
Featured Highlights:
- Rated at 3THP/30A for 240V and 1.5THP/30A for 120V equipment.
- High voltage relays (Quantity 2 in base unit ATT-2, expandable to 8)
- To ensure the appropriate port connector is included, it is best to leverage the Poolside Tech relays for The Attendant
