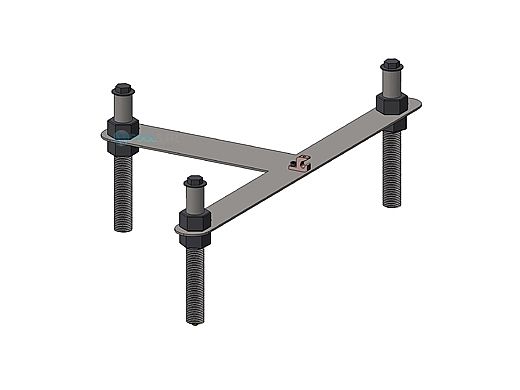

Purpose: For new or retrofit installation of the ADA compliant spa lift on above ground or partially raised pools and spas. Follow product installation instructions.



For installation into rebar reinforced concrete pool decks no smaller than 3'-3" square by 10" deep.  Refer to lift installation instructions for specifics. Must be bonded according to NEC Article 680. Other codes may apply; check your local code enforcement agency for specifics and permit requirements.



Qty	Part No.	Description
1	P-440SAJP	Jig plate, spa elite/ultra
3	BH 1/2 X 1-1/2	2 bolt, 316 SS, 1/2-13 x 1 1/2 HCS
3	WF 1/2	Washer, flat, 1/2, 316 SS
2	P-7200ANB-8	Anchor insert, 304 SS, 1” dia x 8” long, Non-bondable
1	P-7200ANB-8-BB	Anchor insert, 304 SS, 1” dia x 8” long, Bondable
6	NH 1 ZINC	Nut, zinc, hex, 1”-8
3	PIP-1/2-TAB	Tab, PIP-1/2, black cap
1	WF 1/4	Washer, flat, 1/4, 316 SS
1	SPH 1/4 X 3/4 BRASS	Screw, brass, 1/4-20 x 3/4” panhead
1	GBL-4DB	Lug, in ground bonding lug
1	BSH 10 X 3/4	Bolt, 316 SS, 10-24 X 3/4”, SHCS
1	NN 10	Nut, 316 SS, nylock, #10-24
1	Anti sieze, Packet, .75	Anti sieze, Packet, 5 Grams

Aqua Creek Products warrants to the original end user purchaser that products manufactured by Aqua Creek, when properly installed in accordance with assembly and installation instructions, and properly used and maintained, shall be free from defects in material and workmanship for a period provided that Aqua Creek receives prompt notice in writing of any defect or failure and satisfactory proof.
